Precision Capabilities

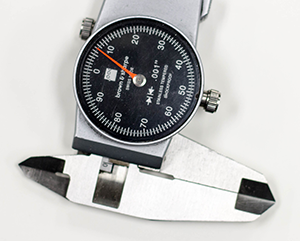

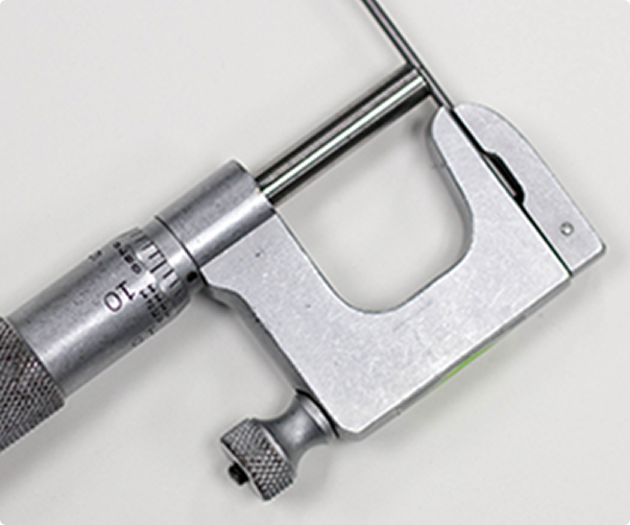

Minalex routinely produces miniature aluminum extrusions with tolerances as tight as ±0.001″
on one or more dimensions (shape dependent). That precision gives design engineers more freedom to specify smaller profiles where tight fits matter most: improving assembly alignment, strengthening mating performance, and often reducing or eliminating secondary machining to help control total part cost.

ALLOYS – Our alloys are sourced in North America and include multiple series, such as 1100, 3003, 6063, 6463, and 6061; selected to support the performance, finish, and consistency your application requires.

Request a Quote
Walls as thin as 0.020″ are also possible on one or more of the dimensions of an extrusion, depending on the shape. As the trend toward miniaturization and design simplicity continues, your need for a dependable supplier of precision aluminum extrusion profiles will surely increase.
Request a Quote

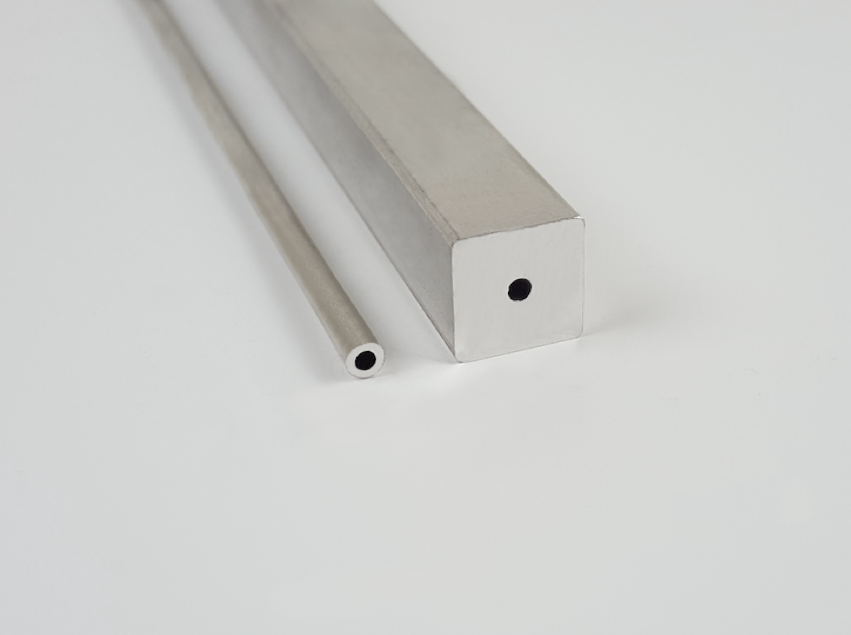

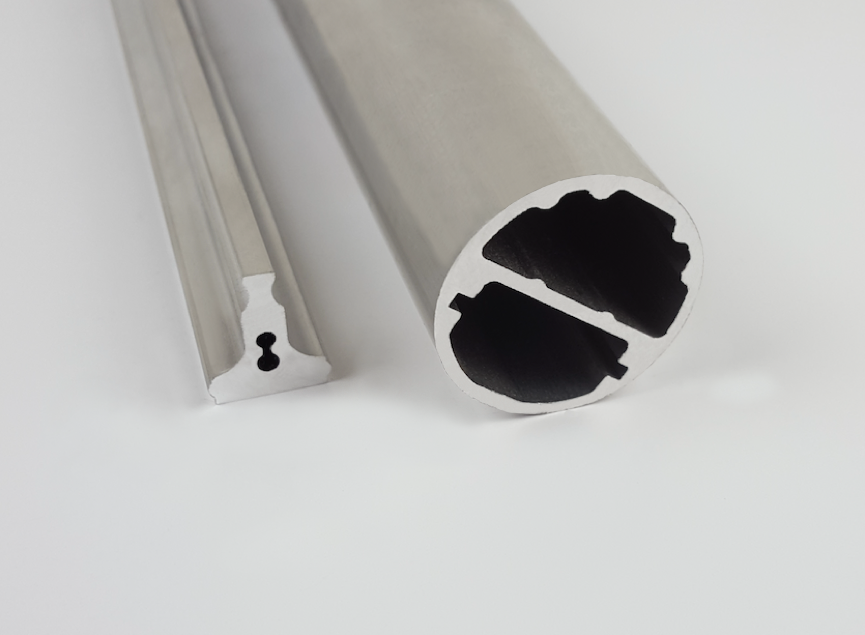

Few extruders would accept a challenge of .045″ holes with +/- 0.001″ tolerances, and some of them would give the project to Minalex. They know, as the industry knows, that Minalex is the right source for the cost-effective production of close tolerance extrusions up to a 3 1/2″ circle size.
Request a Quote

Functional

Exceptionally difficult aluminum extrusions profiles products such as wave guides, card guides and housings are another area where Minalex continues to meet the tight tolerance requirements of demanding industries.

See more examples of our aluminum extruded shapes and profiles.

Request a Quote

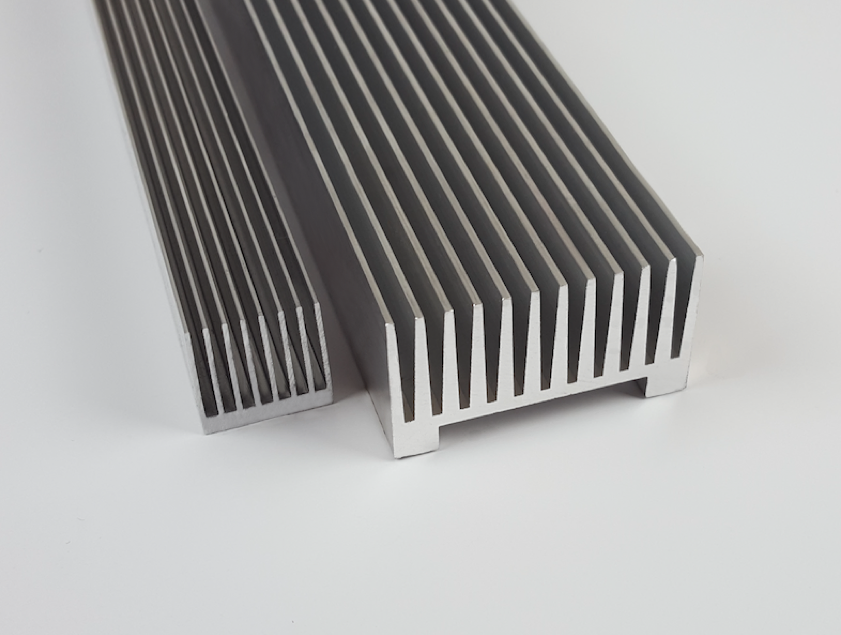

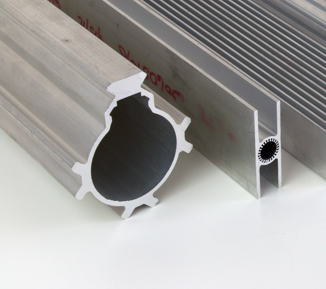

Heat pipes, heat sinks and header bars are often intricate designs requiring close tolerances for maximum performance. Minalex has produced hundreds of these extrusions in every imaginable shape and design up to 3.500 inches (8.89 cm). Minalex is the number one source for these tight tolerance extrusions.

Request a Quote

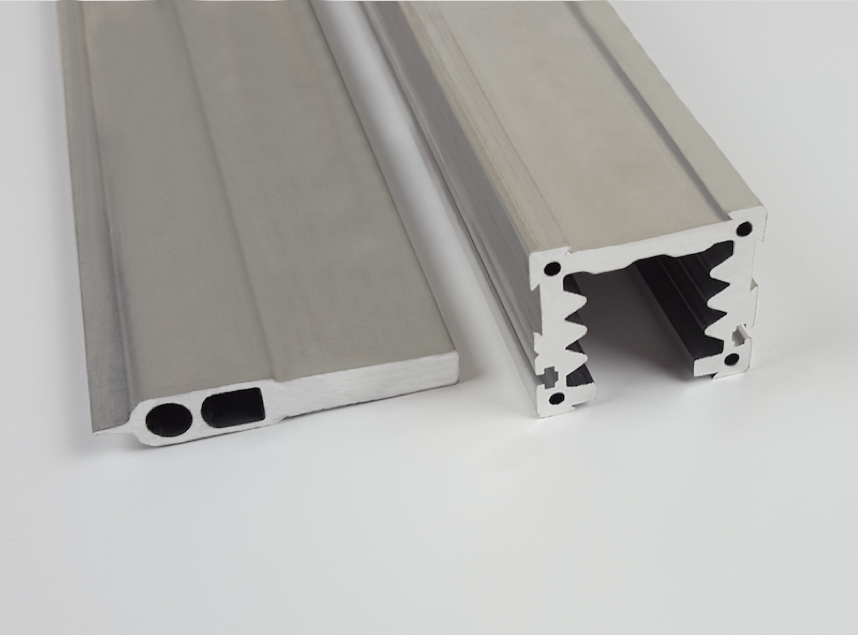

Carriers used by electronics and other industries for various components are another area requiring extremely tight tolerances. Small and often minute parts are transported in openings that must be accurate to 0.001 inches (0.025 cm). Minalex pioneered the production of these extrusions and continues to be the leading manufacturer today.

Request a Quote

Large Aluminum Extrusions

The precision achieved in aluminum extrusions is also possible up to 3.500 inches (8.89 cm) in diameter/circle size. Minalex regularly produces these close tolerance extrusions up to 1.500 pounds per foot (2.2322 kg per meter).

Minalex’s precision capabilities for Large Extrusions are just as effective at 3.500 inches (8.89 cm) as they are down at 0.020 inches (0.457 mm)!

Request a Quote

Standard Extrusions

Select a Category
Legs Wall Weight/Foot
0.2500.0620.0325
0.3750.0780.0629
0.3750.0930.0733
0.5000.0620.0698
0.5000.1250.1313
0.6250.0620.0884
0.6250.1250.1688
1.0000.1250.2813
1.0620.1250.2999
2.0000.1250.5813

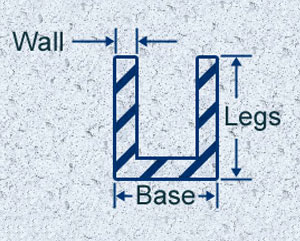

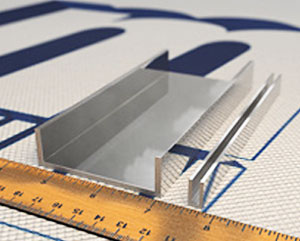

Base Legs Wall Weight/Foot
0.2500.5000.0620.0838
0.3750.3750.1090.1186
0.3750.9370.0620.1581
0.5000.5000.0620.1031
0.5000.5000.1250.1875
0.7500.7500.1250.3000
0.7501.0000.1250.3760
1.0000.5000.0930.2024
1.2500.3750.1250.2625
1.7500.5000.1250.3750
2.0001.0000.1250.5640
2.5000.7500.1250.5625

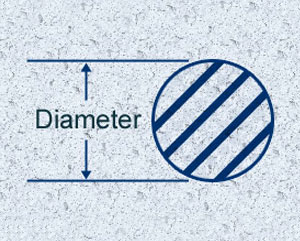

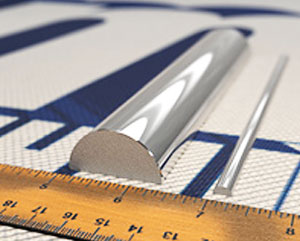

Diameter Weight/Foot
0.2500.0295
1.3750.8909

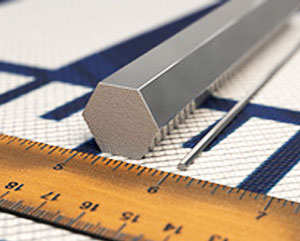

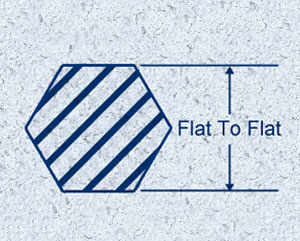

Flat To Flat Weight/Foot
0.0930.0106
0.1090.0124
0.1250.0162
0.1560.0253
0.1870.0366
0.2810.0822
0.7500.5722

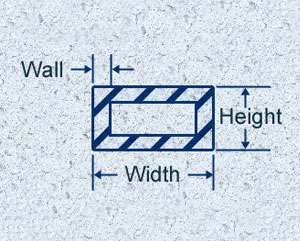

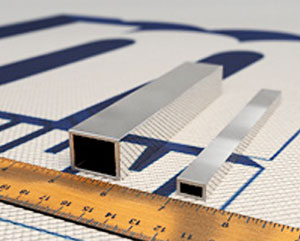

Wall Height Width Weight/Foot
0.062 0.312 0.500 0.106
0.062 0.375 0.625 0.130
0.062 0.375 3.000 0.480
0.062 0.500 1.000 0.205
0.078 0.750 1.000 0.299

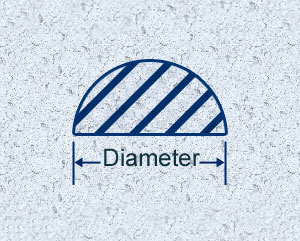

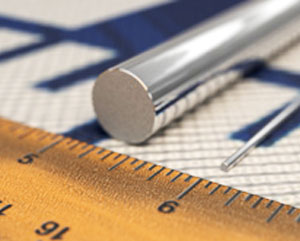

Diameter Weight/Foot
0.062 0.0036
0.125 0.0145
0.156 0.0229
0.187 0.0330
0.250 0.0589
0.375 0.1325
0.500 0.2350

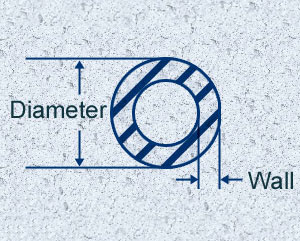

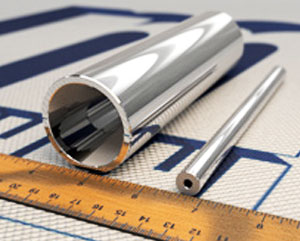

Outside Diameter Wall Weight/Foot
0.437 0.140 0.1565
1.750 0.125 0.7658

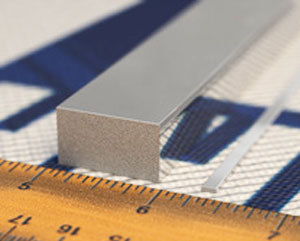

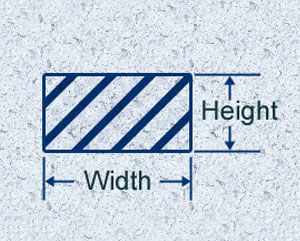

Height Width Weight/Foot
0.0620.1250.0093
0.0620.2500.0186
0.0620.3750.0279
0.0620.5000.0372
0.0620.8750.0651
0.0780.1250.0117
0.0780.1870.0175
0.0930.2030.0232
0.0930.2500.0279
0.1250.1870.0281
0.1250.2030.0305
0.1250.2500.0375
0.1250.3750.0563
0.1250.3900.0585
0.1250.5000.0750
0.1250.6250.0938
0.1250.7500.1125
0.1251.7030.2554
0.1252.1250.3187
0.1400.1870.0314
0.1400.7500.1260
0.1560.3120.0584
0.1560.5000.0936
0.1560.6250.1170
0.1870.2340.0525
0.1870.2500.0561
0.1870.3120.0703
0.1870.3750.0842
0.1870.4370.0981
0.1870.6250.1403
0.1870.6400.1436
0.1870.7030.1578
0.1870.7810.1753
0.1871.0000.2244
0.1871.4680.3294
0.1871.7960.4030
0.1871.8590.4172
0.2030.4370.1065
0.2181.0000.2616
0.2500.3750.1125
0.2500.5000.1500
0.2500.6250.1875
0.2500.6870.2061
0.2501.0000.3000
0.3120.6250.2340
0.3280.3750.1476
0.3750.6250.2813
0.3750.8750.3938
0.4060.5000.2436
0.5000.9210.5526

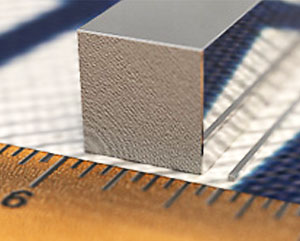

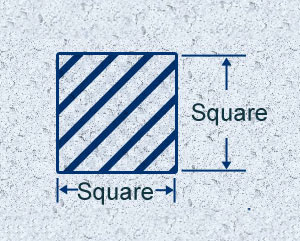

Square Weight/Foot
0.0310.0012
0.0460.0025
0.1250.0188
0.1560.0292
0.2500.0750
0.3120.1168
0.3750.1688
0.5000.3000

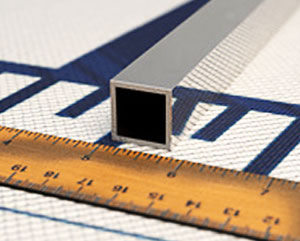

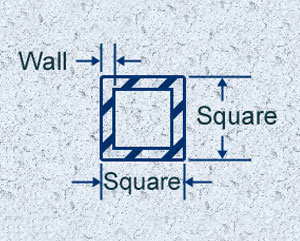

Outside Square Wall Weight/Foot
0.750 0.062 0.205

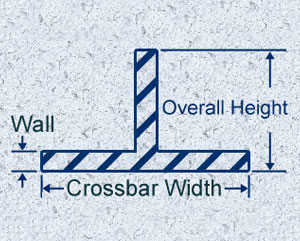

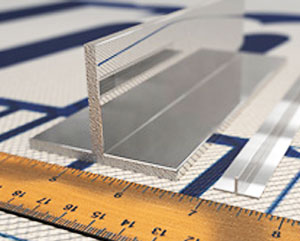

Crossbar Width Overall Height Wall Weight/Foot
0.4370.2500.0620.0466
0.7500.5000.0620.0890
1.0001.2500.1250.3188
1.2501.0000.1250.3188
1.5001.0000.1250.3560
1.7501.2500.2500.8240
2.5001.7500.1870.9100

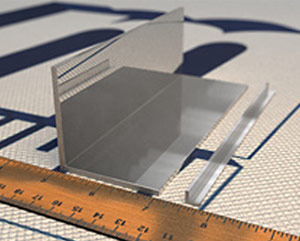

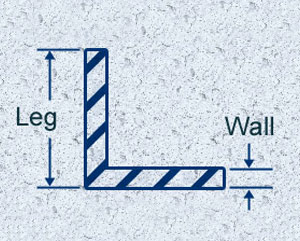

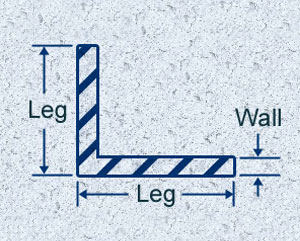

Leg Leg Wall Weight/Foot
0.1560.2810.0620.0279
0.1560.3120.0620.0302
0.2810.5000.0620.0535
0.3750.5000.0620.0605
0.5000.6250.0620.0791
0.5000.6250.1250.1500
0.5001.0000.1250.2060
0.5001.7500.1250.3187
0.6250.8750.1250.2063
0.6251.1250.1250.2438
0.6251.2500.0620.1370
0.6251.3750.1090.2473
0.7501.0000.2500.4500
0.7501.5620.1250.3280
1.0001.3750.1090.2964
1.0001.5000.1250.3563
1.0002.0000.1250.4313
1.0002.3750.1250.4876
1.1251.5000.1250.3750
1.5002.0000.1250.5063
2.0002.5000.1250.6563
